Alumina-based abrasives are widely used in industries requiring high-performance grinding, cutting, and polishing tools. Monocrystalline alumina and microcrystalline alumina are two specialized forms of alumina that have distinct properties and applications. Understanding the differences between them can help manufacturers and buyers choose the most suitable material for their specific needs, particularly in sectors like metalworking, electronics, and precision engineering. We will analyze the composition, properties, applications and advantages of monocrystalline alumina and microcrystalline alumina to help you make the right decision.
Monocrystalline alumina is made by co-melting bauxite, anthracite, iron filings and pyrite in an electric arc furnace. The iron oxide, silicon dioxide and titanium oxide in alumina are successively reduced to form ferroalloys, which are deposited from the melt to the bottom of the furnace. A small part of alumina reacts with carbon and ferrous sulfide to form a small amount of aluminum sulfide that fills between single crystal particles. When the melt is cooled and placed in water, the aluminum sulfide dissolves, and the single crystal corundum separated by aluminum sulfide can be dispersed into abrasives of natural particle size.
Chemical composition: Al2O3 99%–99.72% (GB10174-88 standard)
Particle size composition: 24#–240# (GB2477-83 standard)
Compressive strength: 30.7N
Molding method: 69.25%–82.57%
Toughness: 64.9%
Particle density: 3.96-3.99 g/cm2

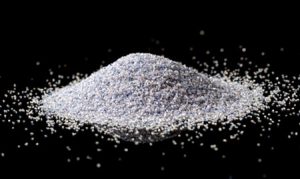

Monocrystalline Alumina is off-white, and its particle shape is mostly the same as the product shape. The crystal does not contain impurities and has a multi-angle cutting edge. Under the same grinding force, the torque formed is smaller than other abrasives, so it is not easy to break and has high mechanical strength. The compressive strength of a single particle is 22-38 kg, but only 10-20 kg. Monocrystalline Alumina has high hardness and toughness, so it has strong cutting ability. It can be used to process high-toughness, high-hardness difficult-to-grind materials such as tool steel, alloy steel, stainless steel and high-barium steel.
Longer Tool Life: Its resistance to fracture leads to less wear, extending the lifespan of tools.
High Efficiency: The sharp edges allow for rapid material removal, improving productivity in grinding and cutting applications.
Consistency in Performance: Monocrystalline crystals maintain their integrity, providing a uniform finish and consistent performance over time.
Microcrystalline alumina is made of bauxite as the main raw material, obtained by high temperature melting and rapid cooling crystallization. The color and chemical composition are similar to brown alumina. The crystal size is small, the toughness is large, and the self-sharpening is good. The grinding tools made of it are suitable for heavy-duty grinding, profile grinding, plunge grinding and rough grinding. It is also suitable for grinding stainless steel, carbon steel, bearing steel and special ductile iron.
Chemical composition: Al2O3 94%–96%
Crystal shape: α-Al2O3 trigonal crystal
Density: >3.90
Hardness: Mohs 9.0
Melting point: 2000℃

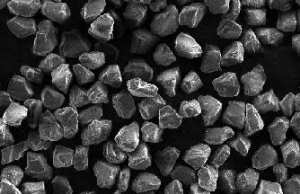

The degree of impurity reduction in the microcrystalline corundum smelting process is poor, the Al2O3 content is 94-96, the body size is generally 80-300 microns, the crystal accounts for 57-85 of the largest crystal size, not exceeding 400-600 microns. It has the characteristics of high strength and high toughness. It is suitable for heavy-duty grinding and can grind materials such as stainless steel, carbon steel, bearing steel and special ductile iron. Since the abrasive grains are in a micro-blade broken state during the grinding process, it can also be used for precision grinding and even mirror grinding.
Self-Sharpening: The structure allows it to continuously reveal new cutting surfaces, maintaining its efficiency over time.
Cost-Effective: Its durability and efficiency in material removal lead to reduced downtime for tool replacements, making it cost-effective for long-term use.
Improved Surface Finish: Microcrystalline alumina is well-suited for applications that require a smooth, consistent finish with minimal surface damage.
|
Property |
Monocrystalline Alumina |
Microcrystalline Alumina |
|
Structure |
Single, continuous crystal |
Multiple microcrystals within each grain |
|
Hardness |
Very hard, suitable for heavy-duty tasks |
Slightly lower hardness, better suited for fine tasks |
|
Self-Sharpening |
Lacks self-sharpening; grains retain sharp edges |
Self-sharpening due to microcrystal fracturing |
|
Durability |
Highly durable; resists fracture |
Durable with added flexibility |
|
Finish Quality |
Effective for sharp, precise cuts |
Creates smoother, more consistent finishes |
|
Applications |
Precision grinding, cutting, and drilling |
General-purpose grinding, polishing, and fine finishing |
|
Cost Efficiency |
Higher cost due to single-crystal formation |
Cost-effective due to long tool life and adaptability |
When deciding between monocrystalline alumina and microcrystalline alumina, consider the specific requirements of your application:
For Heavy-Duty Grinding and Precision: Choose monocrystalline alumina if your application involves high-stress grinding or cutting tasks, as it provides stable performance and resists wear in demanding conditions.
For Consistent Finishes and Versatility: Microcrystalline alumina is ideal for applications needing a fine, smooth finish, or for multi-purpose tools that work on a variety of materials. Its self-sharpening ability helps maintain performance without frequent tool replacement.
Both monocrystalline and microcrystalline alumina offer unique advantages, making each suitable for different industrial applications. Monocrystalline alumina excels in high-stress, precision tasks where durability and sharpness are crucial, while microcrystalline alumina offers versatility and a smoother finish with its self-sharpening properties. By understanding these differences, manufacturers and buyers can select the appropriate alumina type to optimize efficiency, cost, and quality in their specific abrasive applications.
